If you’ve ever worked with High-Performance Liquid Chromatography (HPLC), you know how critical a well-developed method is to achieving accurate, reliable results. Whether you’re analyzing pharmaceuticals, food products, or environmental samples, the ability to fine-tune your HPLC method for each application is a skill every chromatographer needs. But here’s the thing—it’s not just about choosing a column or running a gradient; it’s about creating a method that balances accuracy, reproducibility, and efficiency.
What does successful method development look like to you? For me, it’s when the method works seamlessly, fits the analyte’s properties, and adheres to regulatory requirements. Sounds like a tall order, doesn’t it? Don’t worry, because in this article, we’ll break it down step by step. From understanding the basics to leveraging advanced tools, let’s explore how to create robust HPLC methods that deliver high-quality results.
1. Fundamentals of Developing an HPLC Method
Developing an HPLC method starts with understanding the problem you’re solving. What are you trying to analyze, and what does your sample look like? The more you know about your analytes and matrix, the better your method will perform.
Defining Your Goals
Ask yourself:
- What are the chemical and physical properties of the analytes?
- Do you need quantitative or qualitative data?
- What are your detection limits and precision requirements?
Answering these questions will guide your choices for column selection, mobile phase, and gradient conditions.
Column Selection
The column is often the heart of your HPLC system. Common options include:
- Reversed-phase columns: Best for non-polar or moderately polar compounds.
- Normal-phase columns: Useful for separating polar compounds.
- Ion-exchange columns: Ideal for charged analytes like proteins or peptides.
For many applications, reversed-phase HPLC with a C18 column is the go-to choice due to its versatility. But if your analytes are particularly tricky, consider trying hybrid or specialty columns.
Initial Scouting Runs
Starting with a scouting gradient is a great way to assess your analytes’ behavior. By running a wide gradient over a reasonable range, you can quickly identify the general retention times and separation challenges.
What’s your favorite approach to initial scouting? I find it incredibly rewarding to see those first chromatograms come together—it’s like the foundation of a house being built!
2. Selecting Mobile Phases and Optimizing Gradients
Choosing the right mobile phase is essential for both separation and reproducibility. A poorly chosen mobile phase can lead to unresolved peaks, high backpressure, or even column damage.

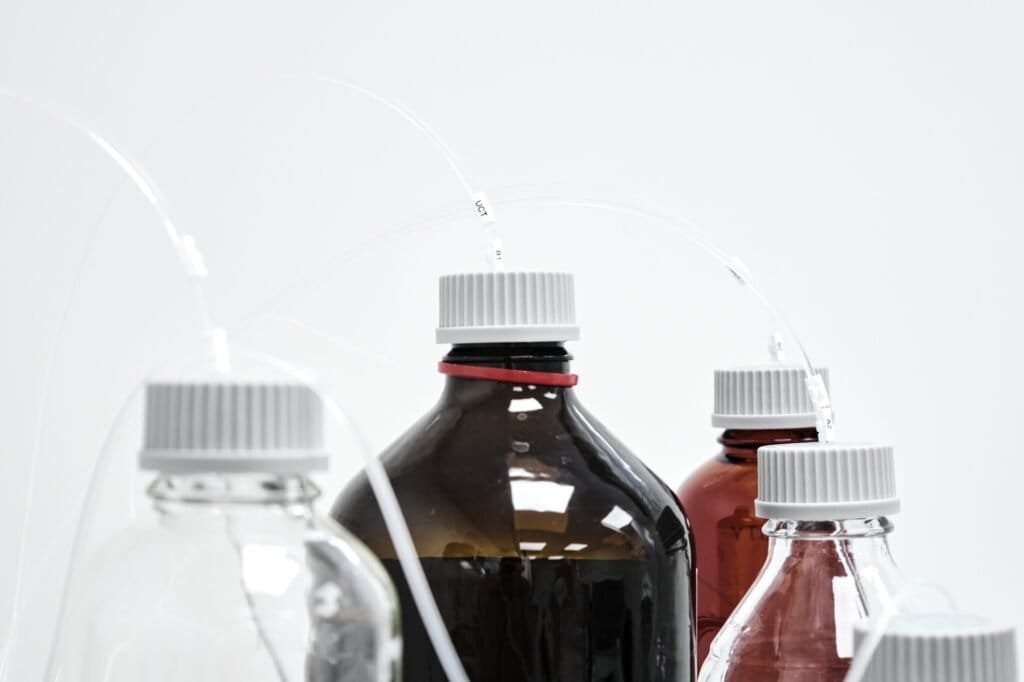

Mobile Phase Selection
Your mobile phase will typically include:
- Aqueous Phase (A): Often water with a buffer (e.g., phosphate or acetate).
- Organic Phase (B): Usually acetonitrile or methanol.
The choice between methanol and acetonitrile often comes down to solvent polarity and UV transparency. Acetonitrile generally offers better peak resolution, but methanol might be preferred for cost savings.
Buffer and pH Considerations
For ionizable analytes, controlling pH is critical. Buffers help stabilize pH, ensuring consistent retention times. Popular options include phosphate, acetate, or formic acid for LC-MS applications.
- pH range: Keep it within your column’s stability range (typically 2–8).
- Adjusting the pH can significantly impact peak shape, particularly for weak acids or bases.
Optimizing Gradients
Start with a simple gradient—say, 5% to 95% organic phase over 20 minutes. Once you identify where your analytes elute, refine the gradient to focus on the key retention times.
- Step gradients are useful for separating analytes with widely varying polarities.
- Isocratic methods work well when all analytes have similar retention behavior.
What do you think is the trickiest part of optimizing a gradient? For me, it’s finding the perfect balance between resolution and runtime.
3. Choosing Detectors for Various Analytes
The choice of detector depends on your analytes and the sensitivity you require. Here’s an overview of common detectors and their strengths:
UV-Vis Detectors
- Best for: Compounds with chromophores (e.g., aromatic rings).
- Advantages: Widely available, robust, and suitable for most applications.
- Tip: Dual-wavelength UV detectors allow you to monitor multiple analytes simultaneously.
Fluorescence Detectors
- Best for: Highly sensitive analyses of fluorescent compounds.
- Advantages: Lower detection limits than UV-Vis but requires fluorescent analytes or derivatization.
Mass Spectrometry (MS)
- Best for: Complex samples requiring high sensitivity and specificity.
- Advantages: Can identify unknowns, detect trace-level compounds, and handle large molecules.
- Challenges: Higher cost and more complex setup.
Have you tried using mass spectrometry as a detector? It’s incredible how much detail you can uncover—though it definitely takes some time to master.
Refractive Index (RI) Detectors
- Best for: Sugars, alcohols, and other analytes lacking UV absorption.
- Advantages: Non-selective and easy to use, but less sensitive than UV or MS.
4. Validation and Reproducibility: Steps for Regulatory Compliance
Once your method is developed, it’s time to validate it. Validation ensures your method meets regulatory standards and provides consistent results.
Key Validation Parameters
Regulatory agencies like the FDA and EMA require evaluation of:
- Accuracy: How close results are to the true value.
- Precision: Repeatability within and between runs.
- Specificity: Ability to separate the analyte from other components.
- Linearity: Consistent response over a range of concentrations.
- Detection and Quantitation Limits: Minimum analyte levels your method can detect or quantify.
Stress Testing
Stress testing evaluates your method under challenging conditions, such as extreme pH, high temperatures, or prolonged runs. This helps ensure robustness in real-world applications.
Reproducibility Across Systems
If your method will be used across multiple labs, testing reproducibility is crucial. This involves running the method on different systems, with different operators, and even with slight variations in conditions.
Do you find validation tedious or rewarding? I’ll admit, it’s not always the most exciting part of HPLC, but it’s satisfying to know your method can stand up to scrutiny.
5. Advanced Tips: Using Software for Method Optimization
Let’s talk about software tools. Modern chromatography software can save hours of trial and error by helping you predict optimal conditions.
Predictive Tools for Retention and Resolution
Software like DryLab or ChromSword allows you to model retention behavior based on input parameters. You can simulate changes in pH, gradient slope, or temperature to find the best conditions before running experiments.
Automated Method Development Platforms
Automated platforms can test multiple conditions simultaneously, dramatically speeding up method development. These tools can adjust gradients, columns, and flow rates to optimize results.
Data Analysis and Peak Integration
Advanced software offers more accurate peak integration and better noise reduction, helping you process complex chromatograms with greater ease.
Are you currently using any software tools for HPLC? If not, this could be a game-changer for streamlining your workflow.
Conclusion: Key Takeaways for Efficient and Accurate Method Development
HPLC method development is both an art and a science. By focusing on the fundamentals—like column selection, mobile phase optimization, and detector choice—you can build a strong foundation for success. At the same time, don’t forget the importance of validation to ensure your method is robust and reliable. And with the help of modern software, you can push the boundaries of what’s possible in chromatography.
What’s your next step in method development? Whether you’re optimizing an existing method or starting from scratch, these strategies can help you achieve efficient, accurate, and reproducible results. Let’s keep raising the bar in chromatography together.

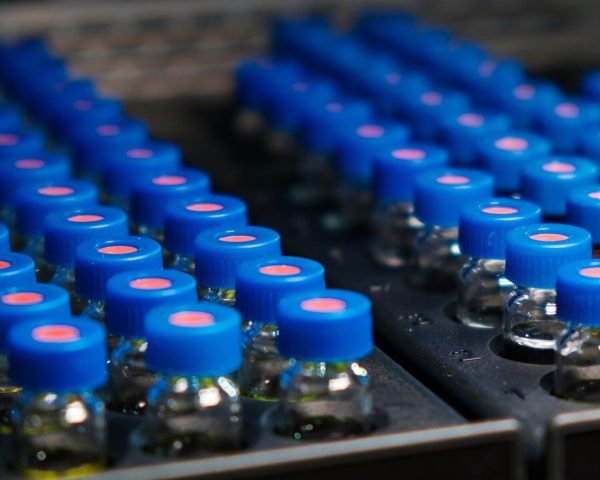

Mastelf, with over 13 years of experience in chromatography vials, we can help you find the exact vials you need for your applications.
Our expertise ensures that you get reliable and precise products tailored to your specific requirements. Whether you’re in pharmaceuticals, research, or any other industry relying on HPLC, we understand your needs and are here to support you in making the right purchase.
Reach out to Mastelf, and let us assist you in procuring the perfect vials for your work.
FAQs
1. How do I choose the right column for HPLC?
Consider your analytes’ polarity, molecular weight, and solubility. Reversed-phase C18 columns are a great starting point for most applications.
2. What’s the best way to adjust pH in the mobile phase?
Use buffers like phosphate or acetate and adjust pH within the column’s recommended range to maintain stability and performance.
3. How can I improve method reproducibility?
Validate your method across multiple systems, use high-quality reagents, and ensure precise control of parameters like temperature and flow rate.
4. Do I need to validate every HPLC method?
Yes, especially for regulated industries like pharmaceuticals. Validation ensures your method meets accuracy, precision, and specificity requirements.
5. Is software worth investing in for method development?
Absolutely! Predictive tools and automated platforms can save time, reduce costs, and improve method performance by minimizing trial and error.
