Introduction: Importance of Gradient Optimization for Difficult Separations
When analyzing complex samples, a simple isocratic HPLC method often isn’t enough. If your peaks are co-eluting, broadening, or missing altogether, switching to gradient elution can dramatically improve separation and resolution. However, poorly optimized gradient methods can lead to inconsistent retention times, baseline drift, and longer run times.
Gradient elution is particularly useful for:
✔ Pharmaceuticals – Separating drug components and impurities.
✔ Food Analysis – Detecting multiple pesticide residues in one run.
✔ Proteomics and Metabolomics – Resolving complex biomolecules.
But how do you optimize gradient slopes, mobile phases, and runtime to achieve the best results? In this guide, we’ll cover:
✔ Gradient vs. isocratic elution – When to use each method.
✔ How to choose the right mobile phase and modifiers.
✔ Optimizing gradient slope and total runtime.
✔ Software tools for developing better gradient methods.
✔ A case study on gradient optimization in pharmaceuticals.
Let’s dive into the key factors for effective gradient elution in HPLC.
1. Basics of Gradient Elution vs. Isocratic Elution
1.1 What is Gradient Elution?
Gradient elution gradually changes the mobile phase composition over time. The mobile phase starts weak (more aqueous) and becomes stronger (more organic), allowing analytes with different polarities to elute efficiently.
✔ Example: 10% acetonitrile to 90% acetonitrile over 20 minutes.
1.2 When to Use Gradient vs. Isocratic Elution
| Factor | Isocratic Elution | Gradient Elution |
|---|---|---|
| Sample Complexity | Simple mixtures with similar polarities. | Complex mixtures with varying retention times. |
| Run Time | Shorter but limited separation power. | Longer but better peak resolution. |
| Baseline Stability | Stable (constant composition). | May drift due to changing solvent properties. |
| Peak Sharpness | Peaks may broaden over time. | Sharper peaks and better resolution. |
✔ Use isocratic for simple separations where all analytes elute within k’ = 2–10.
✔ Use gradient for complex mixtures with a wide range of retention times.
Now, let’s look at how to optimize your mobile phase for better gradients.
2. Selecting the Right Mobile Phase and Modifiers
2.1 Choosing the Best Solvent System
The mobile phase should enhance separation while minimizing peak tailing. The most common gradient systems include:

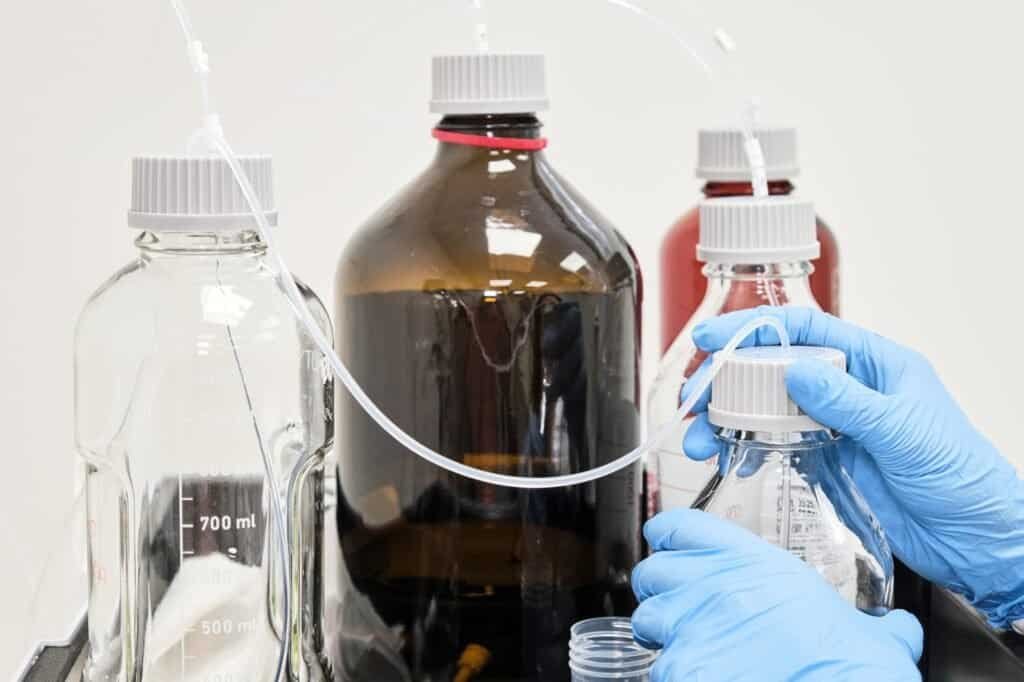

✔ Reversed-Phase (RP-HPLC):
- Aqueous Phase (Solvent A): Water, buffer (phosphate, formic acid).
- Organic Phase (Solvent B): Acetonitrile or methanol.
✔ Normal-Phase HPLC:
- Solvent A: Hexane.
- Solvent B: Isopropanol, ethyl acetate.
2.2 Adjusting Buffer Strength and pH
✔ Use buffers (e.g., phosphate, ammonium acetate) to maintain peak shape.
✔ pH matters! Adjusting pH affects analyte ionization and retention.
- Acidic compounds → Use low pH (3-5) to suppress ionization.
- Basic compounds → Use higher pH (7-10) to enhance retention.
2.3 Adding Modifiers for Improved Separation
✔ Ion-Pairing Agents (e.g., TFA, heptafluorobutyric acid) help separate charged analytes.
✔ Organic Modifiers (e.g., THF) can sharpen peaks and reduce tailing.
Selecting the right solvents and buffers ensures stable gradients and well-resolved peaks. Now, let’s optimize the gradient slope and runtime.
3. Optimizing Gradient Slope and Runtime
3.1 Understanding Gradient Slope
The gradient slope controls how fast the mobile phase composition changes.
✔ Steep Gradients (Fast Change, e.g., 10% to 90% in 5 min):
- Faster run times.
- Poor resolution for closely eluting peaks.
✔ Shallow Gradients (Slow Change, e.g., 10% to 90% in 30 min):
- Better peak resolution.
- Longer runtime but improved separation.
3.2 Optimizing Total Run Time
✔ Start with a scouting run (broad gradient, e.g., 5–95% organic in 20 minutes).
✔ Identify where peaks elute, then narrow the gradient range.
✔ Reduce re-equilibration time – Use 1 column volume for faster analysis.
3.3 Gradient Hold and Step Gradients
✔ Gradient Hold: Keeps the organic phase constant at a specific percentage to improve separation.
✔ Step Gradient: Abrupt solvent change (e.g., 10% to 50%, hold for 5 min, then to 90%). Useful for multi-class separations.
Optimizing the gradient slope and runtime ensures faster, more efficient separations.
4. Software Tools for Method Development
4.1 Using Chromatography Data Systems (CDS)
✔ Agilent OpenLab, Waters Empower, and Thermo Chromeleon can simulate gradient changes.
4.2 AI-Based HPLC Optimization
✔ AutoChrom, ACD/Labs predict the best gradient conditions for faster method development.
4.3 Computer-Simulated Gradient Optimization
✔ Software tools predict peak movement, reducing trial-and-error experiments.
✔ Example: DryLab can optimize gradient elution in just a few runs.
Using software-assisted method development saves time and improves reproducibility.
5. Case Study: Optimizing Gradient Elution for a Pharmaceutical Sample
5.1 Problem
A pharmaceutical lab needed to separate five active drug ingredients and three impurities in a single run. Their isocratic method resulted in co-elution of two components.
5.2 Solution
✔ Switched to gradient elution (10% to 90% acetonitrile over 15 min).
✔ Added ammonium acetate buffer (pH 4.5) to stabilize peak shape.
✔ Reduced gradient slope to improve resolution.
5.3 Results
✔ Achieved Rs > 2.0 for all peaks (baseline separation).
✔ Reduced run time from 40 min to 20 min.
✔ Improved batch-to-batch reproducibility.
This case study demonstrates how gradient optimization enhances pharmaceutical separations.
Conclusion: Final Recommendations for Gradient Optimization
To achieve better separation and faster analysis, follow these key gradient optimization strategies:
✔ Use the right solvent system – Adjust aqueous/organic composition and buffers.
✔ Fine-tune gradient slope – Shallower gradients improve resolution, steeper gradients shorten runtime.
✔ Use method development software – Tools like DryLab or ACD/Labs can simulate peak movements.
✔ Optimize re-equilibration time – Reducing column equilibration improves efficiency.
✔ Test different modifiers – Adjusting pH and ion-pairing agents improves peak shape.
Gradient optimization is a powerful tool—are you ready to enhance your HPLC separations? 🚀
Mastelf, with over 13 years of experience in chromatography vials, we can help you find the exact vials you need for your applications.
Our expertise ensures that you get reliable and precise products tailored to your specific requirements. Whether you’re in pharmaceuticals, research, or any other industry relying on HPLC, we understand your needs and are here to support you in making the right purchase.
Reach out to Mastelf, and let us assist you in procuring the perfect vials for your work.
FAQs
1. Why is gradient elution better than isocratic for complex samples?
Gradient elution improves separation for compounds with different polarities, avoiding peak merging.
2. What is the ideal gradient slope for best resolution?
Shallow gradients (e.g., 10–90% in 20 min) offer better resolution, while steep gradients shorten runtime.
3. How do I reduce baseline drift in gradient HPLC?
Use matched solvents, UV-transparent buffers, and allow proper column re-equilibration.
4. Can I use gradient elution with any HPLC column?
Yes, but gradient-compatible columns (e.g., C18, phenyl, HILIC) provide better stability.
5. How do I troubleshoot inconsistent retention times in gradient elution?
Ensure proper pump calibration, use fresh solvents, and maintain column equilibration.
